Pellets

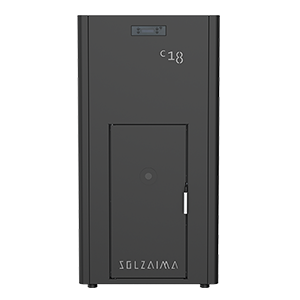

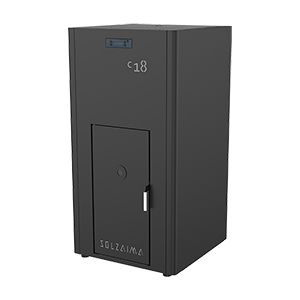

SZM ECO C 18 kW

characteristics

Max Heating Volume (m³) 409

Nominal Efficiency (kW) 18,0

Min Power (kW) 6,3

Nominal Power Water (kW) 16,60

Min Power To Water (kW) 5,10

Nominal Power (%) 91,5

Reduced Power Output (%) 95

Max Pellet Consumption (kg/h) 4,16

Min Pellet Consumption (kg/h) 1,40

Capacity Deposit Pellets (Kg) 72

Nominal Voltage (V) 230

Electrical Frequency (Hz) 50

Max Gas Temperature (ºC) 118,95

Min Gas Temperature (ºC) 61,00

Max Pressure (bar) 3

Weight (kg) 230

Chimney Diameter (mm) 100

Needed Depression In The Fireplace (pa) 12

Maximum Noise Level (Db) 49,1

Autonomy Min/Max (h) 17,3 - 51,4

Efficiency 95 %

Rated power 18 kW

Autonomy deposit min-max 17,3 - 51,4 h

Efficiency class

Try it on the simulator

Try out
