Wood

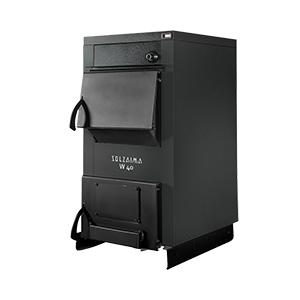

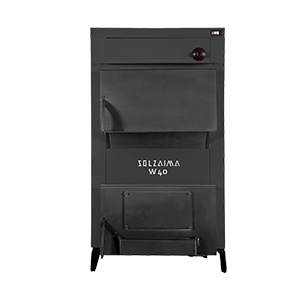

SZM W PLUS 40

characteristics

Max Heating Volume (m³) 909

Nominal Power Water (kW) 40

Nominal Power (%) 90,7

Consumption Efficiency Wood/Hour (kg) 7,9

Wood Size (mm) 500

Max Gas Temperature (ºC) 195,7

Weight (kg) 320

Chimney Diameter (mm) 180

Needed Depression In The Fireplace (pa) 21

Water Volume (L) 120

Max wood humidity 20 %

Max wood size 500 mm

Weight 320 kg

Efficiency class
