Pellets

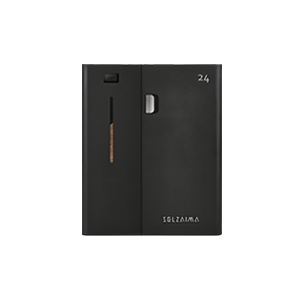

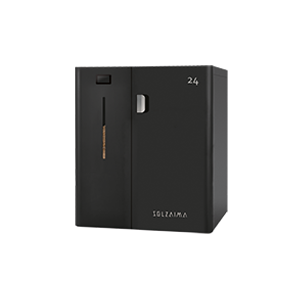

SZM A PLUS 24

characteristics

Max Heating Volume (m³) 545

Nominal Power Water (kW) 24

Min Power To Water (kW) 7,2

Nominal Power (%) 91,3

Reduced Power Output (%) 92

Max Pellet Consumption (kg/h) 5,3

Min Pellet Consumption (kg/h) 1,6

Capacity Deposit Pellets (Kg) 124

Nominal Voltage (V) 230

Electrical Frequency (Hz) 50

Max Gas Temperature (ºC) 112,9

Min Gas Temperature (ºC) 65,7

Weight (kg) 413

Chimney Diameter (mm) 100

Needed Depression In The Fireplace (pa) 12

Maximum Noise Level (Db) 54

Water Volume (L) 50

Autonomy Min/Max (h) 23,4 - 77,5

Weight 413 kg

Chimney 100 mm

Pellet tank 124 kg

Efficiency class
