Pellets

SZM A 24 kW

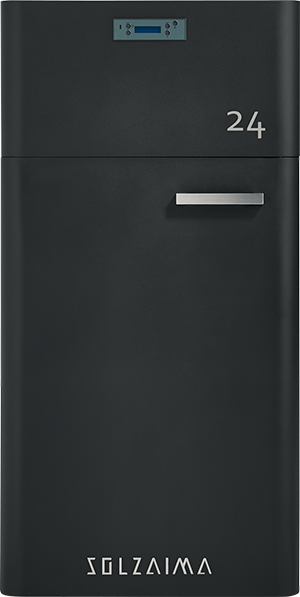

SZM A 24 kW - Front view

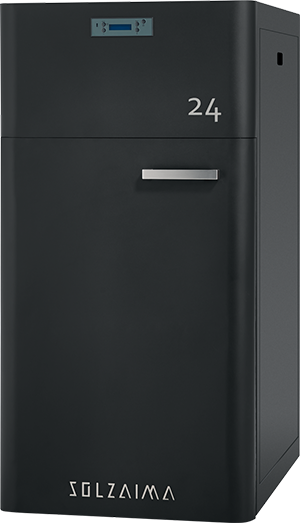

SZM A 24 kW - Side view

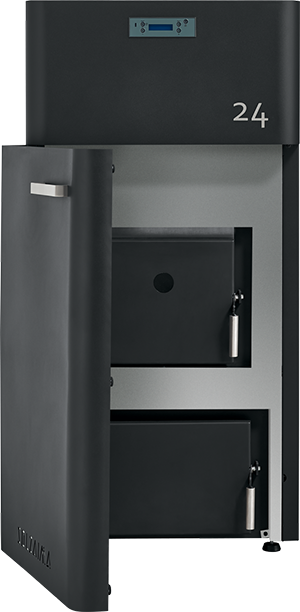

SZM A 24 kW - Open door view

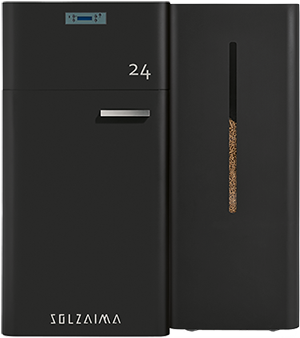

SZM A 24 kW - With Silo

Product sheet Instruction manual Declaration of performance CE declaration Energy Efficiency Ecodesign Certificate Sketchup Spare Parts

characteristics

Max Heating Volume (m³) 545

Nominal Power Water (kW) 24

Min Power To Water (kW) 5,7

Nominal Power (%) 90,24

Reduced Power Output (%) 88

Max Pellet Consumption (kg/h) 5,27

Min Pellet Consumption (kg/h) 1,328

Capacity Deposit Pellets (Kg) 45

Rated Electric Power (w) 110

Electric Starting Power (w) 410

Nominal Voltage (V) 230

Electrical Frequency (Hz) 50

Max Gas Temperature (ºC) 112

Min Gas Temperature (ºC) 74

Max Pressure (bar) 3

Expansion Tank Volume (L) 16

Weight (kg) 386

Chimney Diameter (mm) 100

Needed Depression In The Fireplace (pa) 12

Maximum Noise Level (Db) 54

Water Volume (L) 60

Autonomy Min/Max (h) 8,5 - 33,9

Weight 386 kg

Chimney 100 mm

Pellet tank 70L 45kg

Efficiency class

Try it on the simulator

Try out
