Pellets

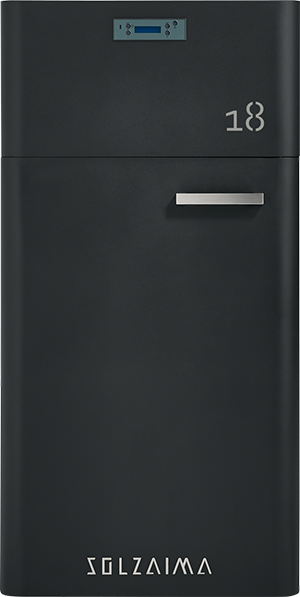

SZM A 18 kW

characteristics

Max Heating Volume (m³) 410

Nominal Power Water (kW) 18

Min Power To Water (kW) 5,65

Nominal Power (%) 90,08

Reduced Power Output (%) 88

Max Pellet Consumption (kg/h) 4,39

Min Pellet Consumption (kg/h) 1,328

Capacity Deposit Pellets (Kg) 45

Rated Electric Power (w) 110

Electric Starting Power (w) 410

Nominal Voltage (V) 230

Electrical Frequency (Hz) 50

Max Gas Temperature (ºC) 102

Min Gas Temperature (ºC) 74

Max Pressure (bar) 3

Expansion Tank Volume (L) 10

Weight (kg) 373

Chimney Diameter (mm) 100

Needed Depression In The Fireplace (pa) 12

Maximum Noise Level (Db) 54

Water Volume (L) 60

Autonomy Min/Max (h) 10,3 - 33,9

Weight 373 kg

Chimney 100 mm

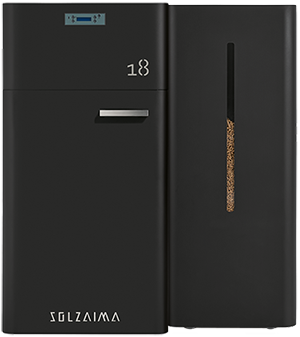

Pellet tank 70L 45kg

Efficiency class
