Wood

Orion Eco 70

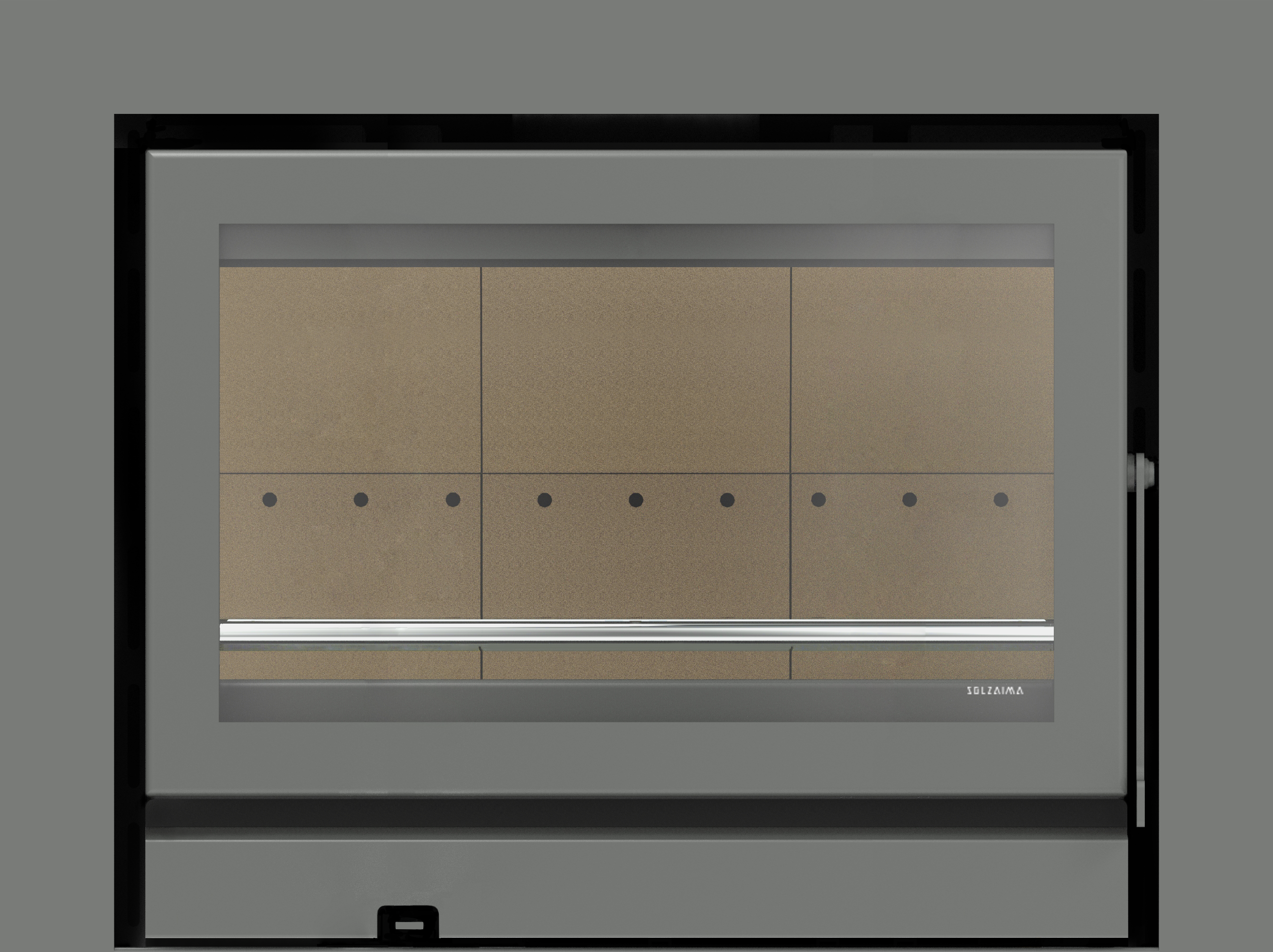

Orion Eco 70 - with 3 sided frame 4,4 cm

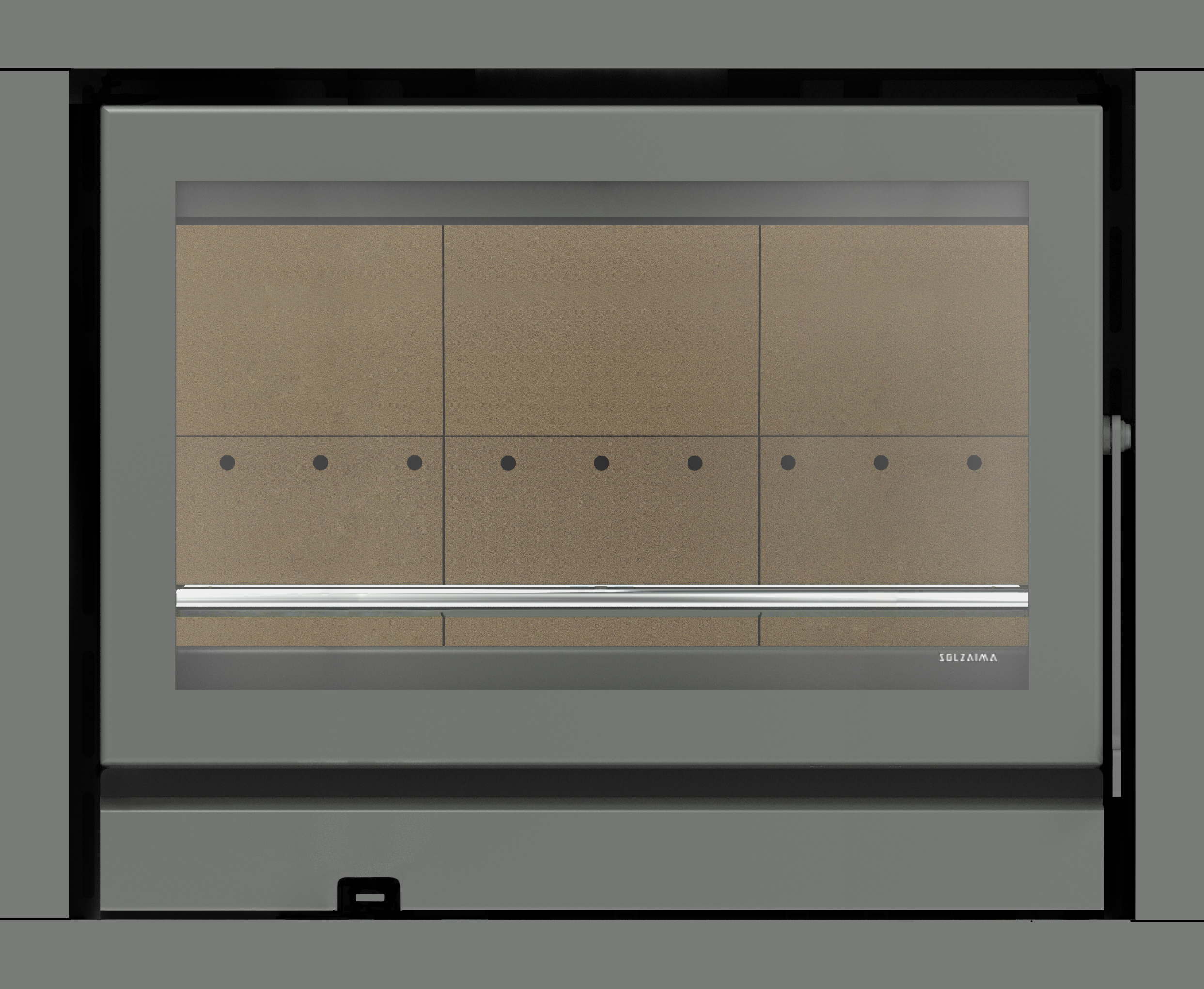

Orion Eco 70 - with 3 sided frame 7,4 cm

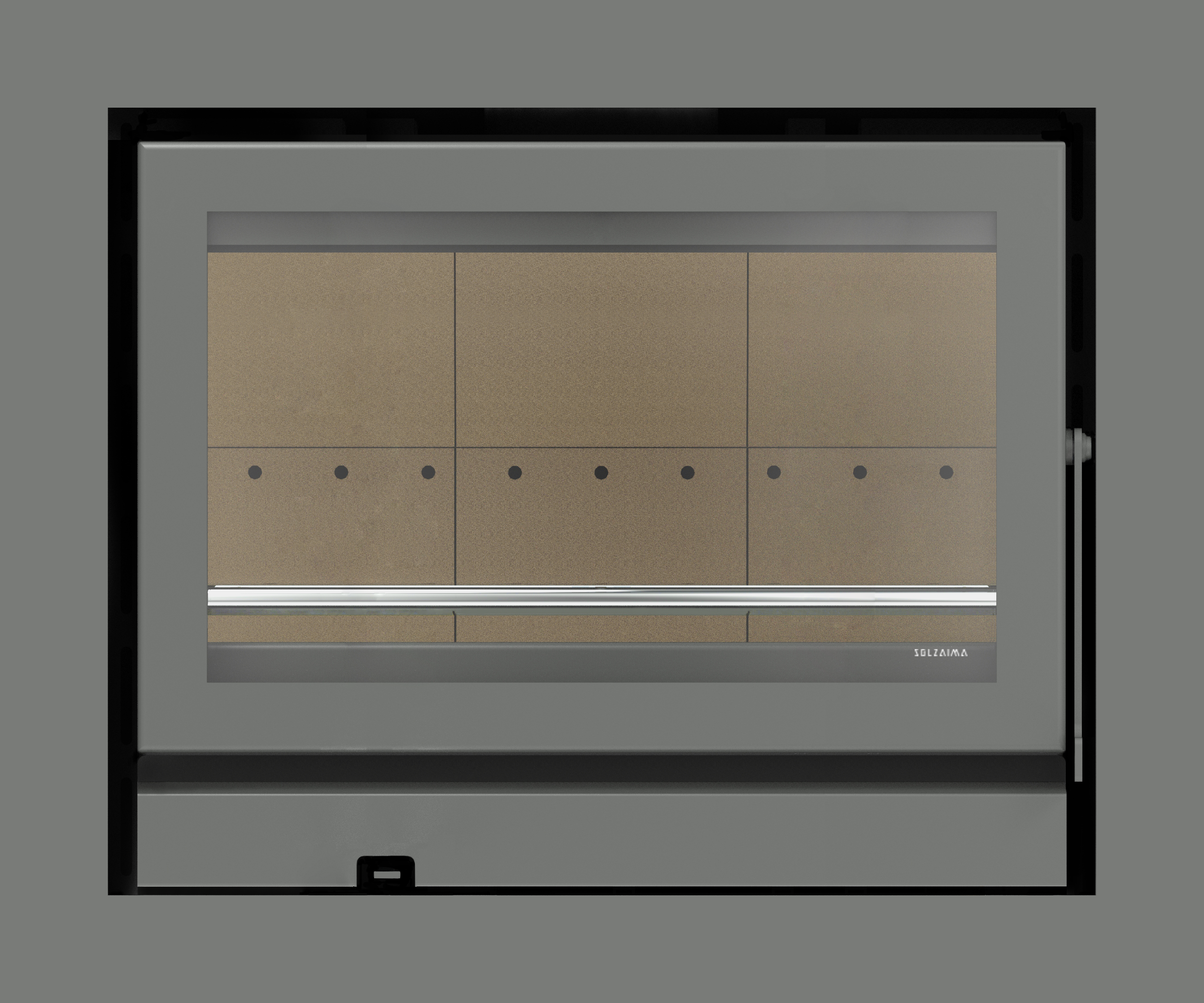

Orion Eco 70 - with 4 sided frame 4,4 cm

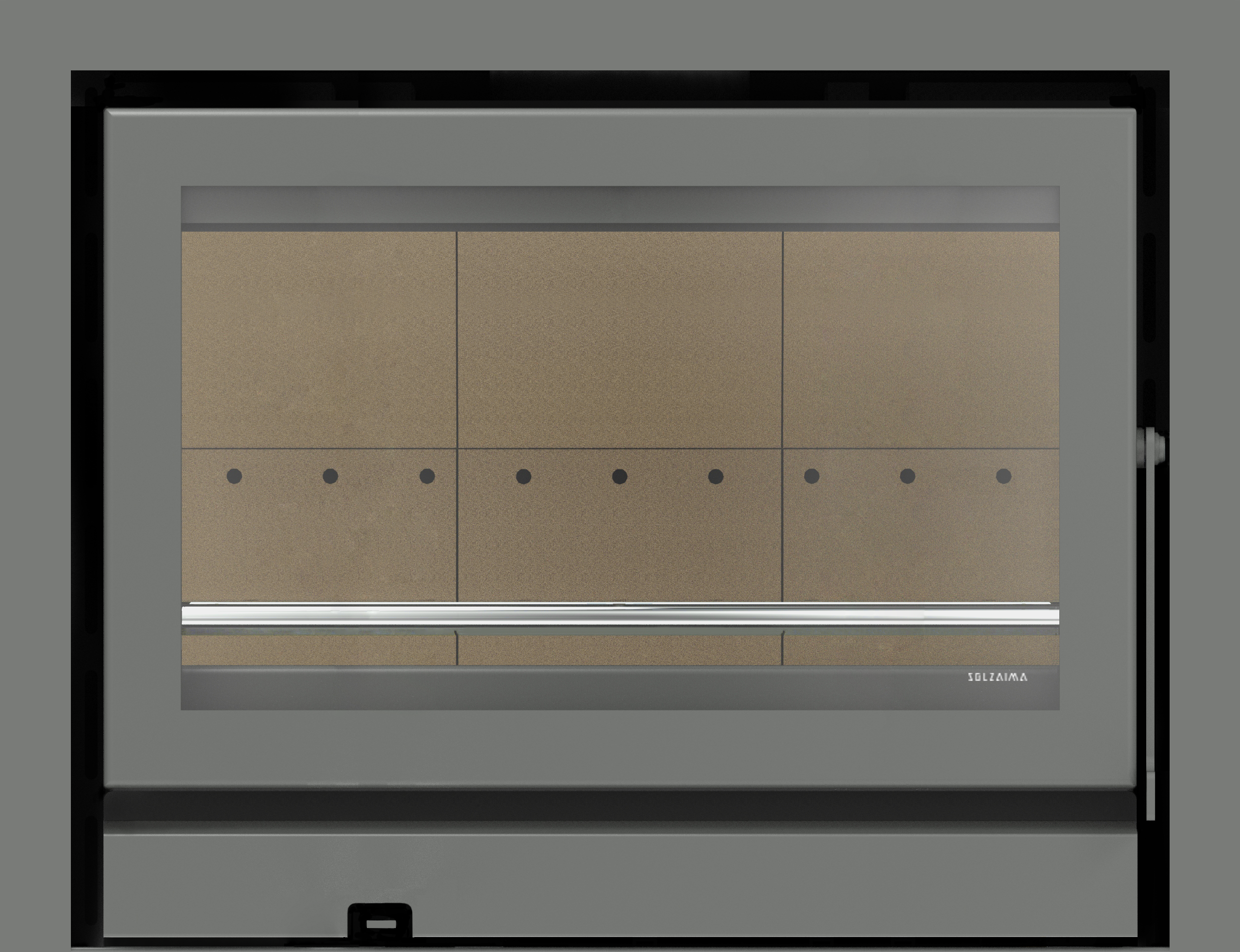

Orion Eco 70 - with 4 sided frame 7,4 cm

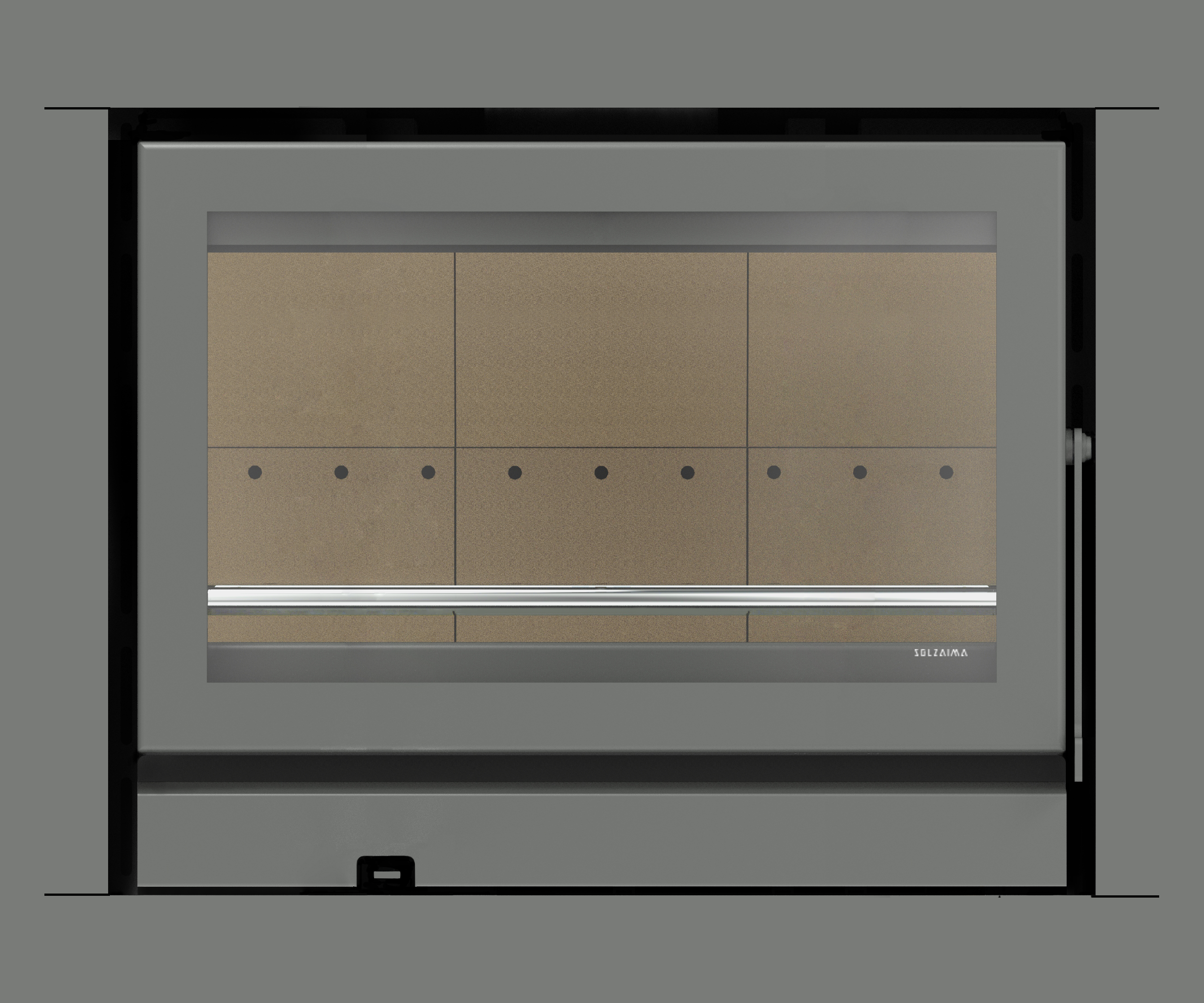

Orion Eco 70 - with quadripartite frame 4,4 cm

characteristics

Max Heating Volume (m³) 211

Nominal Efficiency (kW) 9,3

Power Output (kW) 6,6 - 12,1

Nominal Power (%) 78,2

Consumption Efficiency Wood/Hour (kg) 2,8

Wood Size (mm) 500

Max Gas Temperature (ºC) 275,5

Chimney Diameter (mm) 180

Needed Depression In The Fireplace (pa) 12

Maximum Noise Level (Db) 59,4

Efficiency 78,2 %

Wood consumption/hour 2,8 kg

Maximum heat volume 211 m3

Efficiency class

Try it on the simulator

Try out
