Pellets

Olive Concept 10 kW

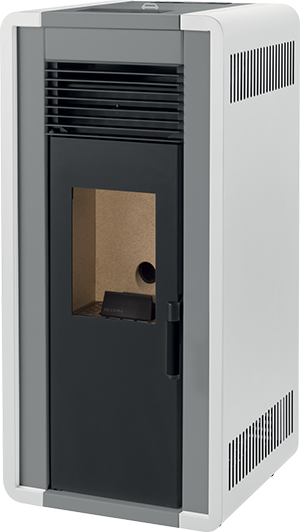

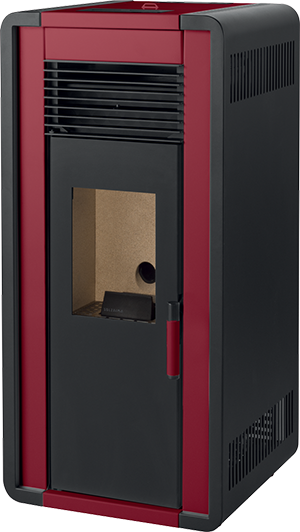

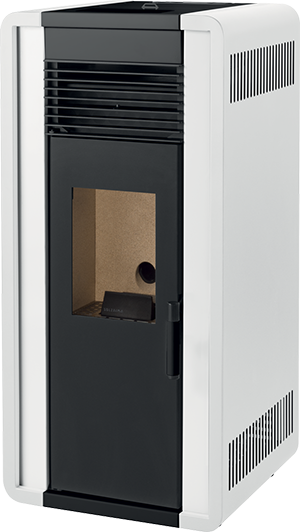

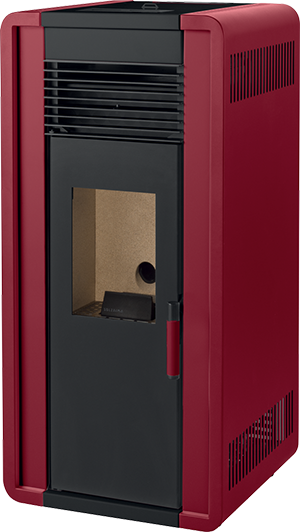

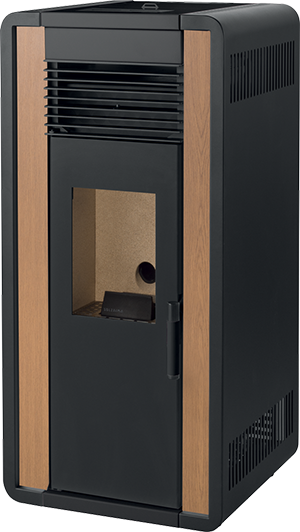

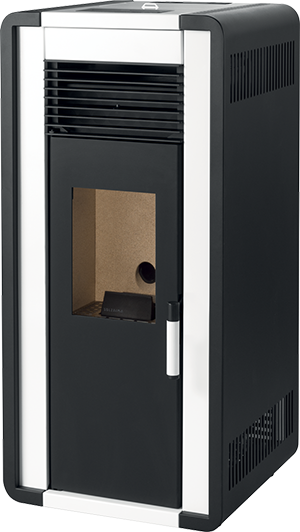

Olive Concept 10 kW - configuration example

Olive Concept 10 kW - configuration example

Olive Concept 10 kW - configuration example

Olive Concept 10 kW - configuration example

Olive Concept 10 kW - configuration example

Olive Concept 10 kW - configuration example

Product sheet Instruction manual Declaration of performance CE declaration Energy Efficiency Ecodesign Certificate Sketchup Spare Parts

characteristics

Max Heating Volume (m³) 227

Nominal Efficiency (kW) 10

Min Power (kW) 3,5

Nominal Power (%) 91,4

Reduced Power Output (%) 96

Max Pellet Consumption (kg/h) 2,3

Min Pellet Consumption (kg/h) 0,77

Capacity Deposit Pellets (Kg) 17

Nominal Voltage (V) 230

Electrical Frequency (Hz) 50

Max Gas Temperature (ºC) 149

Min Gas Temperature (ºC) 59

Weight (kg) 110

Chimney Diameter (mm) 80

Needed Depression In The Fireplace (pa) 12

Maximum Noise Level (Db) 48,2

Autonomy Min/Max (h) 7,4 - 22

Efficiency 96 %

Rated power 10 kW

Autonomy deposit min-max 7,4 - 22 h

Efficiency class

Set up your olive.

Customize
