Pellets

Hidro 23 kW Douro Collection - Glass Door

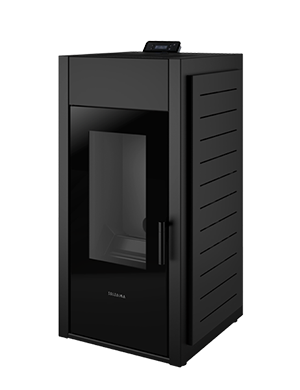

Hidro 23 kW Douro Collection - Glass Door - Black

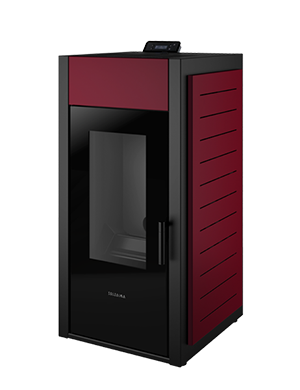

Hidro 23 kW Douro Collection - Glass Door - Bordeaux

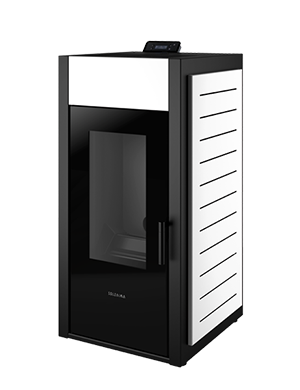

Hidro 23 kW Douro Collection - Glass Door - White

characteristics

Max Heating Volume (m³) 502

Nominal Efficiency (kW) 22,1

Min Power (kW) 5,1

Nominal Power Water (kW) 18,8

Min Power To Water (kW) 4,3

Nominal Power (%) 89,2

Reduced Power Output (%) 94

Max Pellet Consumption (kg/h) 5,1

Min Pellet Consumption (kg/h) 1,1

Capacity Deposit Pellets (Kg) 45

Nominal Voltage (V) 230

Electrical Frequency (Hz) 50

Max Gas Temperature (ºC) 153,40

Min Gas Temperature (ºC) 66,05

Max Pressure (bar) 3

Weight (kg) 219

Chimney Diameter (mm) 100

Needed Depression In The Fireplace (pa) 12

Maximum Noise Level (Db) 49,1

Autonomy Min/Max (h) 8,8 - 40,9

Efficiency 93,8 %

Rated power 22,1 kW

Autonomy deposit min-max 8,8 - 40,9 h

Efficiency class
