Pellets

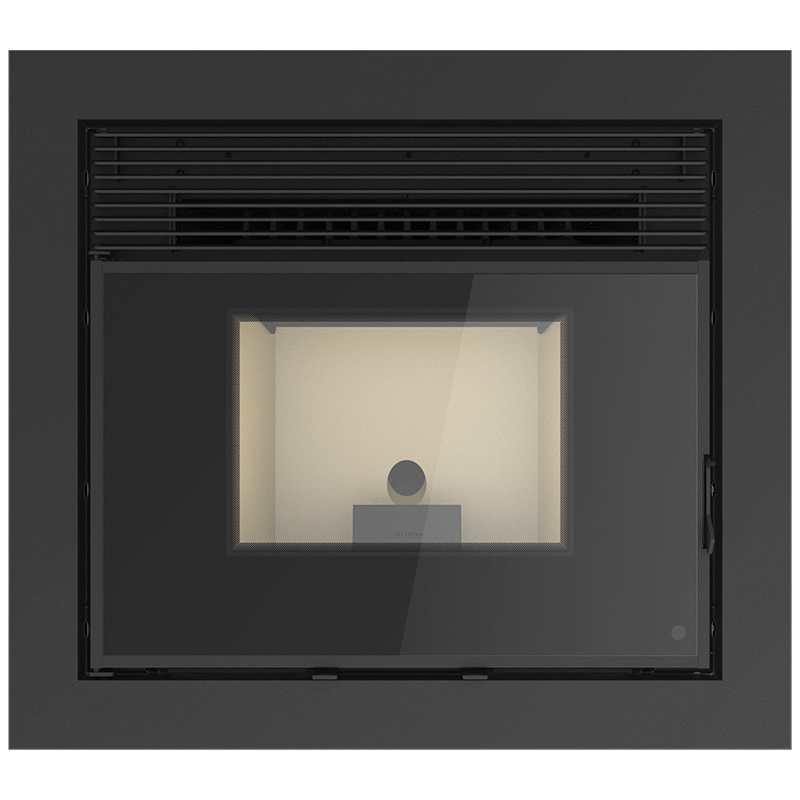

Earth 9 kW

Earth 9 kW - 3S Frame

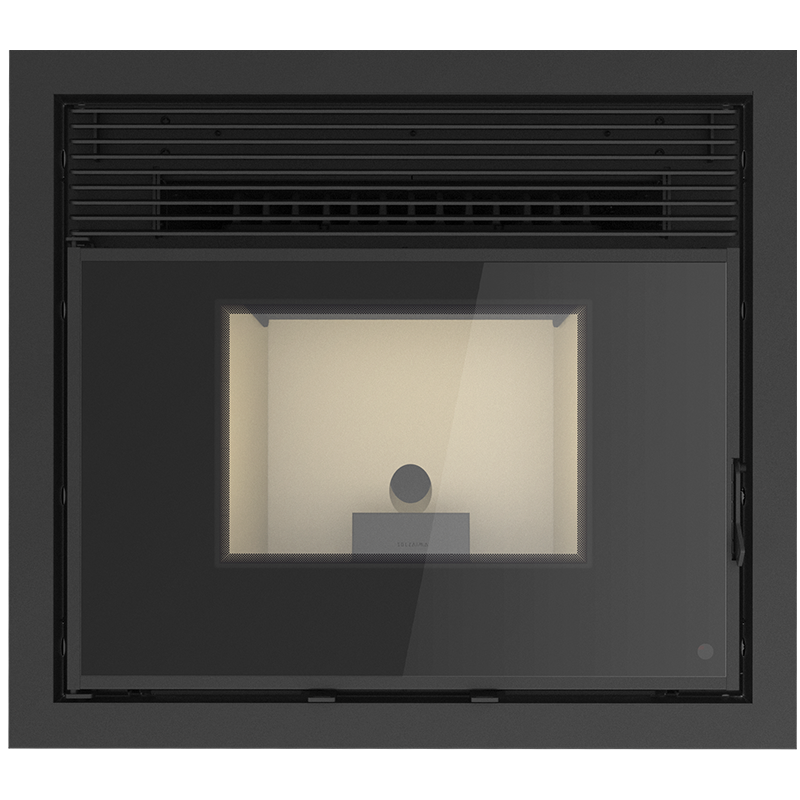

Earth 9 kW - 4S Frame 4,4 cm

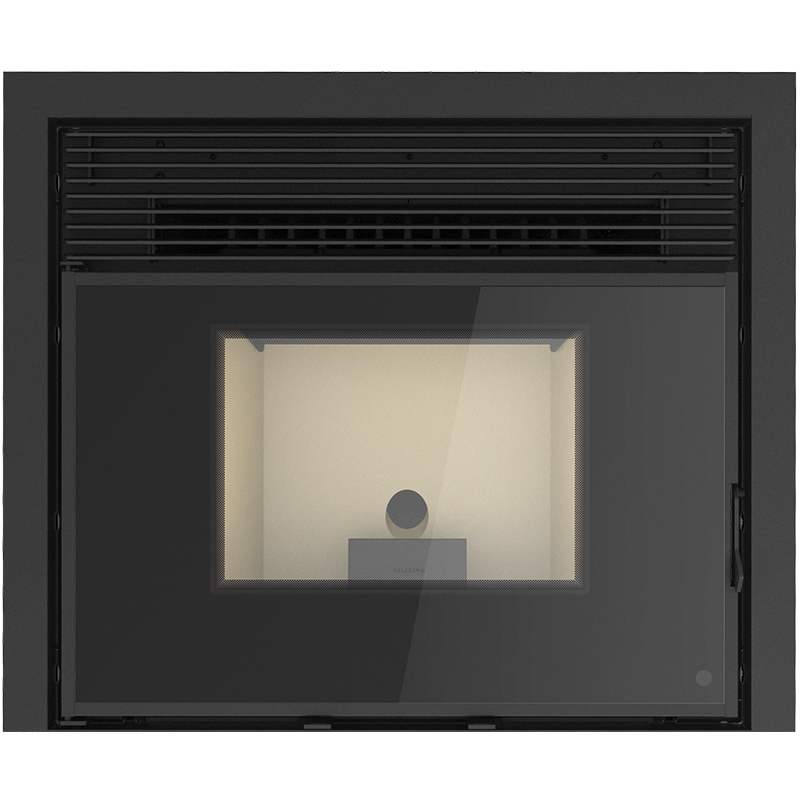

Earth 9 kW - 4S Frame 7,4 cm

Product sheet Instruction manual Declaration of performance Spare Parts (Document) CE declaration Energy Efficiency Ecodesign Certificate Sketchup Spare Parts

characteristics

Max Heating Volume (m³) 189

Nominal Efficiency (kW) 8,3

Min Power (kW) 3,2

Nominal Power (%) 90,1

Reduced Power Output (%) 96

Max Pellet Consumption (kg/h) 1,9

Min Pellet Consumption (kg/h) 0,7

Capacity Deposit Pellets (Kg) 15

Nominal Voltage (V) 230

Electrical Frequency (Hz) 50

Max Gas Temperature (ºC) 154,1

Min Gas Temperature (ºC) 66,3

Weight (kg) 114

Chimney Diameter (mm) 80

Needed Depression In The Fireplace (pa) 12

Maximum Noise Level (Db) 48,2

Autonomy Min/Max (h) 7,9 - 21,4

Flow Fan (m³/h) 322

Efficiency 96 %

Rated power 8,3 kW

Autonomy deposit min-max 7,9 - 21,4 h

Efficiency class
